How to Adjust a Berkel Slicer Blade?

Adjusting a Berkel slicer blade involves a systematic procedure that includes removing the sharpener, product table, and knife cover. The slicer is placed in the service position, and the knife motor is detached. The knife pulley assembly set screws are then loosened, allowing the knife shaft to be adjusted. It’s critical to set the knife height to approximately 0.123″ below the ring guard.

Understanding Your Berkel Slicer

Understanding your berkel slicer
Berkel Slicer

Berkel slicers, such as the B Series (B9, B10, B12, and B14), and the 823E, 827E & 827A models, among others, come with several standout features. Here are some common specifications:

Berkel slicers also come in various dimensions, motor powers, and cutting capacities, each designed to suit your unique needs in the kitchen. Now, let’s look into adjusting the blade of your Berkel slicer.

Safety Measures:

Before we begin, let’s emphasize the importance of safety when working with a Berkel slicer. Adhering to the following safety measures will help prevent accidents and ensure a secure environment:

  1. NEVER touch this machine without training and authorization from your supervisor.
  2. The machine MUST be on solid-level support.
  3. GUARDS MUST BE in place before plugging in and turning on the machine.
  4. ALWAYS use the three-pronged plug provided.
  5. ALWAYS use a food pusher, not your hand, when feeding products into the slicer.
  6. NEVER TOUCH the rotating knife.
  7. KEEP hands, arms, hair, and loose clothing clear of all moving parts.
  8. If the machine jams, TURN OFF and unplug it before removing any obstructions.
  9. TURN OFF AND UNPLUG the machine from the power source before cleaning, sanitizing, or servicing.
  10. USE ONLY the attachments provided by the manufacturer.

Step-by-Step Guide to Adjusting a Berkel Slicer Blade:

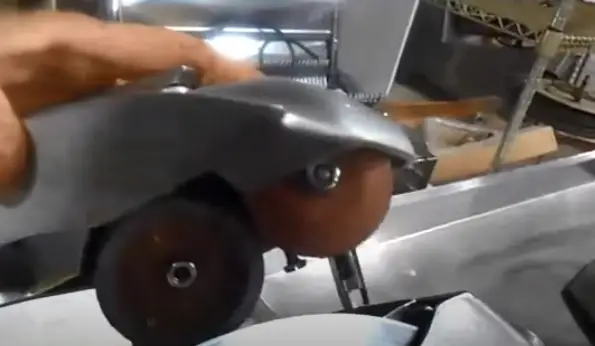

  1. Remove the sharpener:
  2. Remove the product table:
    • Locate the product table, which is the surface where the food rests for slicing.
    • Carefully remove the product table from the slicer.
  3. Remove the knife cover:
    • Identify the knife cover, which protects the blade.
    • Remove the knife cover according to the manufacturer’s guidelines.
  4. Place the slicer in the service position:

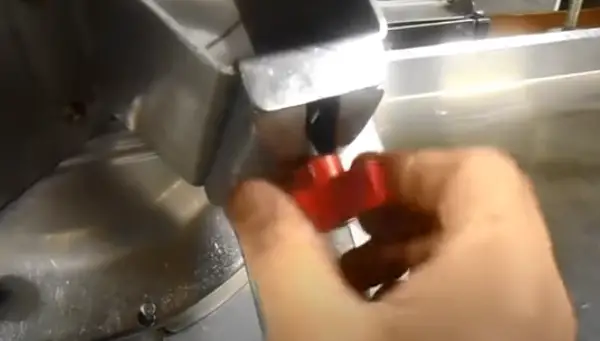

  5. Remove the knife motor:
    • Locate the knife motor, which drives the blade.
    • Disconnect the knife motor from the slicer, ensuring following the proper disconnection procedure.
      Remove the knife motor
      Remove The Knife Motor
  6. Loosen the knife pulley assembly set screws:
    • Identify the knife pulley assembly set screws on the slicer.
    • Using an appropriate tool, loosen the set screws to allow adjustments to the knife height.
  7. Adjust the knife height:
    • Raise, lower, or turn the knife shaft to set the knife height.
    • Aim for a knife height of approximately 0.123″ (3.12 mm) below the ring guard.
    • Make precise adjustments to achieve the desired slice thickness.
  8. Secure the knife pulley assembly:
    • Once you have set the knife height, tighten the knife pulley assembly set screws securely.
    • Ensure the knife is stable and properly aligned.
  9. Reassemble the slicer:
    • Reverse the steps taken to disassemble the slicer, carefully reassembling the knife motor, knife cover, product table, and sharpener.
    • Make sure all components are securely in place.
  10. Perform a test run:
Something More Relevant:  How To Sharpen A Carving Knife?

FAQs

How do i adjust the blade of a berkel slicer
Adjusting The Blade Of A Berkel Slicer

Q: How do I adjust the blade of a Berkel slicer?

Begin by removing the sharpener, product table, and knife cover. Place the slicer in the service position and remove the knife motor. Loosen the knife pulley assembly set screws, then adjust the knife shaft to set the knife height to approximately 0.123″ below the ring guard.

What safety measures should I take when adjusting a Berkel slicer blade?

Always ensure the machine is unplugged before making adjustments. Never touch the rotating knife and always use the food pusher, not your hand. It’s also crucial to receive training and authorization before working on the machine.

What are some features of Berkel slicers?

Berkel slicers come with a belt-driven slicer knife, a permanent knife ring guard, and a ceramic stone sharpener, among other features.

How can I access the blade on a Berkel slicer?

To access the blade on a Berkel slicer, you must remove the sharpener, product table, and knife cover.

What position should the slicer be in for adjusting the blade?

The slicer should be placed in the service position when adjusting the blade.

How do i adjust the height of the blade on a berkel slicer
Adjusting The Height

How do I adjust the height of the blade on a Berkel slicer?

After loosening the knife pulley assembly set screws, you can raise, lower, or turn the knife shaft to set the knife height to approximately 0.123″ below the ring guard.

What should I do if my Berkel slicer jams?

If your Berkel slicer jams, turn off and unplug the machine before removing the obstruction.

Summary:

Adjusting the blade on your Berkel slicer is a fundamental task for achieving precise and consistent slicing results. By following our step-by-step guide, you can safely adjust the blade height and ensure optimal performance. Remember to prioritize safety, adhere to the provided safety measures, and always consult your slicer’s manual for specific instructions. Happy slicing!

Something More Relevant:  How To Clean A Berkel Meat Slicer?

Key Points:

  • Adjusting the blade on a Berkel slicer is essential for precise slicing and safety.
  • Follow safety measures to prevent accidents when working with a slicer.
  • A step-by-step guide to adjusting a Berkel slicer blade:
    1. Remove the sharpener.
    2. Remove the product table.
    3. Remove the knife cover.
    4. Place the slicer in the service position.
    5. Remove the knife motor.
    6. Loosen the knife pulley assembly set screws.
    7. Adjust the knife height to approximately 0.123″ below the ring guard.
    8. Secure the knife pulley assembly.
    9. Reassemble the slicer.
    10. Perform a test run.

Conclusion

Adjusting a Berkel slicer blade may initially seem daunting, but with the right steps and precautions, it’s a task you can handle with confidence. By following this comprehensive guide, you’ll ensure that your slicer is always in top condition, guaranteeing efficient and safe operation. Remember, whenever you’re working with kitchen equipment, safety should always be your priority.
